Product Detail

Product overview

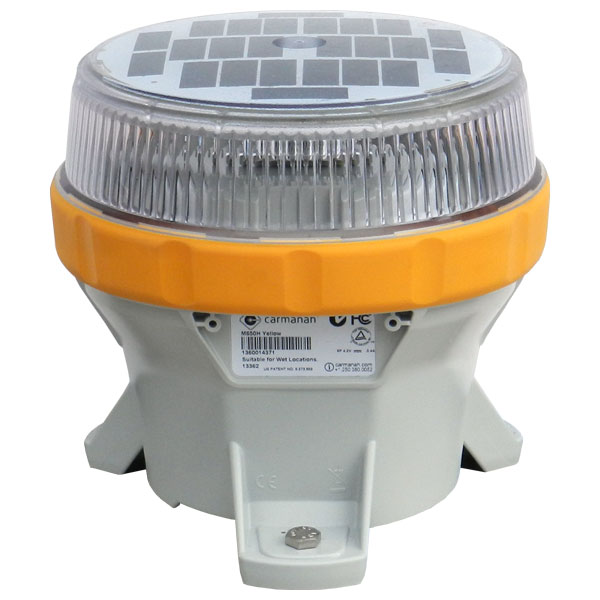

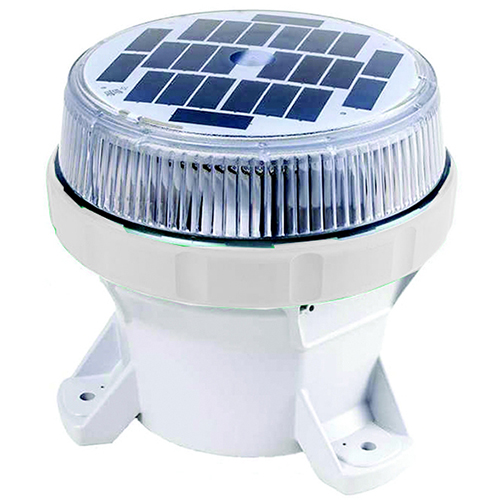

Self-contained LED lantern for buoys and minor beacons, 2 to 4+ NM Range
The M650H is a cost effective, self contained, high-performance, low maintenance and easy-to-install solar LED marine lantern. The M650H features a replaceable battery pack that extends the service life beyond f ive years, reducing the total cost of ownership. Applications include: marine aids-to-navigation marking, marina lighting, dock lighting, and port lighting. To view performance in your installation location, visit www.carmanahmarine.com/selector.

  • Standard IALA colours Red, Green, White, Yellow, Blue
  • High-efficiency solar cells with bypass and blocking diode function. Maximum power point tracking (MPPT) for optimal energy collection
  • Premium grade UV resistant, polycarbonate/polysiloxane co-polymer body and lens material
  • Colour-specific temperature corrected LED drivers provide consistent intensity under all operating conditions
  • IP 68 rated. Double O-ring sealing with waterproof vent
  • SLA battery
  • Ventilated battery compartment

2 Videos

Product overview

Self-contained LED lantern for buoys and minor beacons, 2 to 4+ NM Range
The M650H is a cost effective, self contained, high-performance, low maintenance and easy-to-install solar LED marine lantern. The M650H features a replaceable battery pack that extends the service life beyond f ive years, reducing the total cost of ownership. Applications include: marine aids-to-navigation marking, marina lighting, dock lighting, and port lighting. To view performance in your installation location, visit www.carmanahmarine.com/selector.

  • Standard IALA colours Red, Green, White, Yellow, Blue
  • High-efficiency solar cells with bypass and blocking diode function. Maximum power point tracking (MPPT) for optimal energy collection
  • Premium grade UV resistant, polycarbonate/polysiloxane co-polymer body and lens material
  • Colour-specific temperature corrected LED drivers provide consistent intensity under all operating conditions
  • IP 68 rated. Double O-ring sealing with waterproof vent
  • SLA battery
  • Ventilated battery compartment
Technical details

Specifications

Lens visual/Mechanical diameter 165 mm
Lens material UV stabilized Polycarbonate
Light source High Power Light Emitting Diode (LED)
Vertical divergence >8° (FWHM)
Solar module High efficiency cells; bypass and blocking diodes; MPPT

Additional Details

Battery: Sealed Lead Acid
Degree of ingress protection: IP 68
Weight: 1.58 kg
Overall height: 169 mm
Overall width: 176 mm dia.
Installation: 3 x M6 on 150 mm dia.
