Product overview

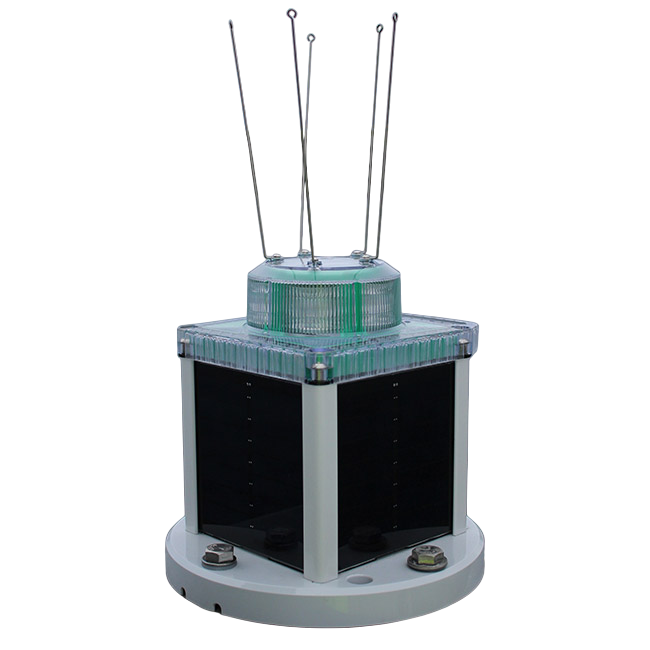

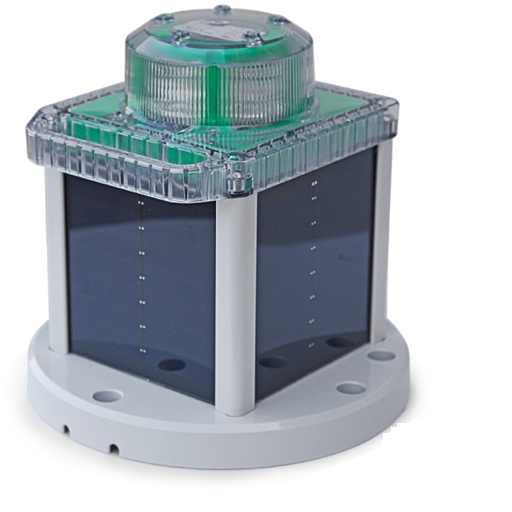

Self-contained LED lantern, 3 to 6+ NM Range.
The M850 combines a compact, high-efficiency solar engine with premium components and a rugged design for best-in-class performance at an optimal price. This lantern is suitable for use in most solar locations. To view performance in your installation location, visit www.sabik-marine.com ->Marine Selector Tool
- Option for standard or wide divergences (for fixed or floating applications)
- Multiple cost-effective battery pack options suitable for a wide variety of installation locations
- Built-in calendar function for automatic deactivation during off-season months
- Top-mounted 4-character LED display with simple » tap to activate « functionality
- Premium grade, UV resistant polycarbonate lens
material - Environmentally friendly, super durable powder-coated aluminium chassis
- Adjustable intensity and range
- IP 68 rated
- GPS synchronized flash option
- Remote monitoring options available
Related Products
2 Videos
Product overview
Self-contained LED lantern, 3 to 6+ NM Range.
The M850 combines a compact, high-efficiency solar engine with premium components and a rugged design for best-in-class performance at an optimal price. This lantern is suitable for use in most solar locations. To view performance in your installation location, visit www.sabik-marine.com ->Marine Selector Tool
- Option for standard or wide divergences (for fixed or floating applications)
- Multiple cost-effective battery pack options suitable for a wide variety of installation locations
- Built-in calendar function for automatic deactivation during off-season months
- Top-mounted 4-character LED display with simple » tap to activate « functionality
- Premium grade, UV resistant polycarbonate lens
material - Environmentally friendly, super durable powder-coated aluminium chassis
- Adjustable intensity and range
- IP 68 rated
- GPS synchronized flash option
- Remote monitoring options available
Technical details
Specifications
Lens visual/Mechanical diameter
111 mm
Construction
Premium grade, UV resistant polycarbonate lens/head and polycarbonate/polysiloxane co-polymer base
Light source
High Flux Surface Mount LEDs with colour-specific temperature-corrected LED driver
Vertical Divergence (FWHM)
8° (standard) or 10° (wide)
Solar modules
High-efficiency cells; MPPT; 4 x 1,7 W
Additional Details
Battery:
Two replaceable, recyclable battery options, AMG sealed lead acid; 60 Wh/6.3V/10 Ah capacity and 96 Wh/6.3 V/16 Ah capacity
Degree of ingress protection:
IP 68 immersion
Weight:
4.5 kg M850 60X, 5.3 kg M850 96E
Overall height:
226 mm
Overall width:
235 mm dia.
Installation:
3, 4 or 5 x M12 on 200 mm dia.
Charge port:
Factory option
GPS sync:
Factory option
Remote monitoring:
Optional satellite monitoring
