Explosion Proof Signal Beacons and Alarm Bell
Brand: Qlight
Warranty: 1 Year
Product overview

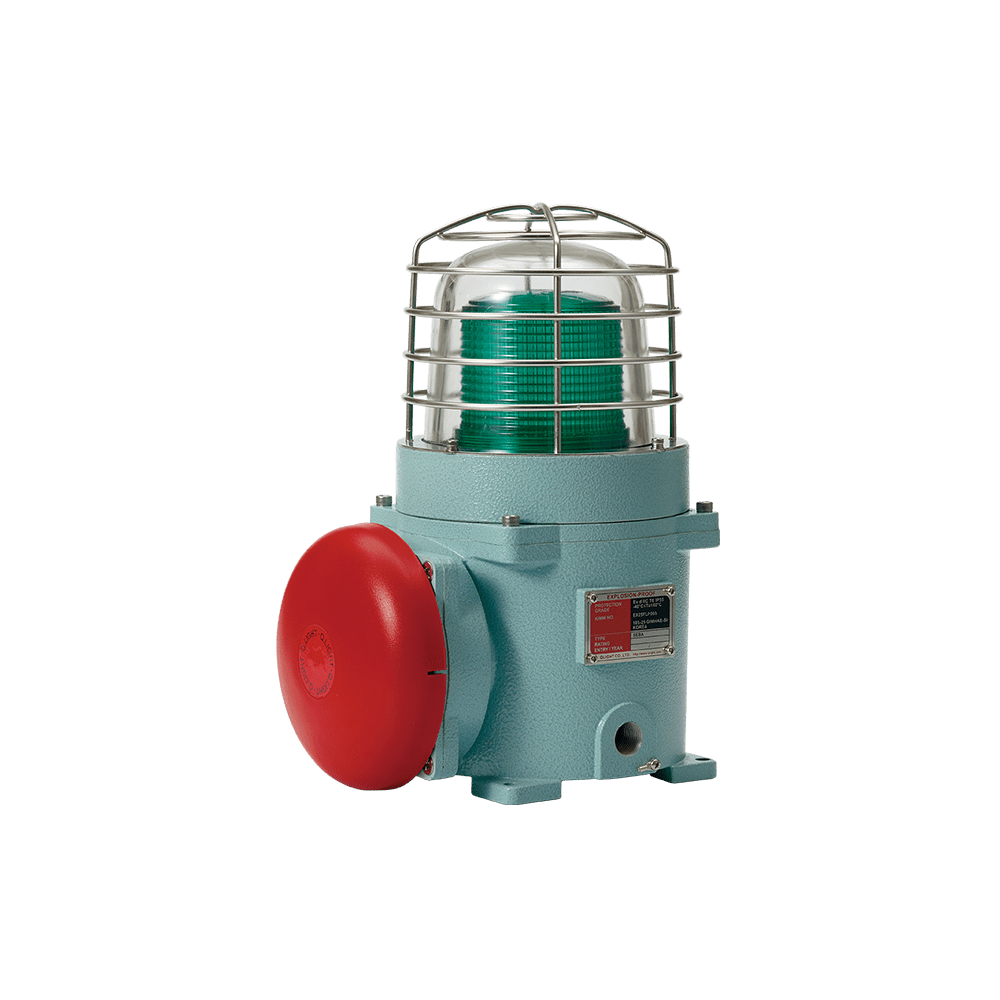

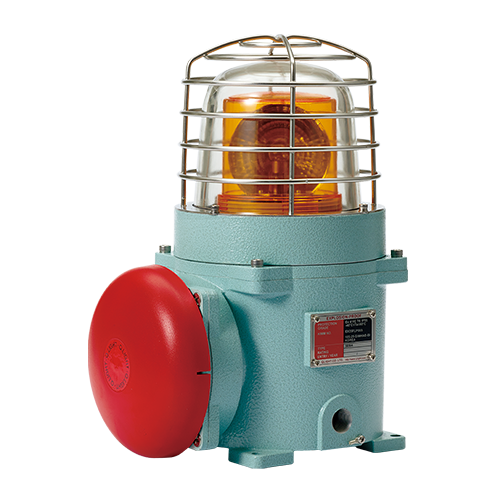

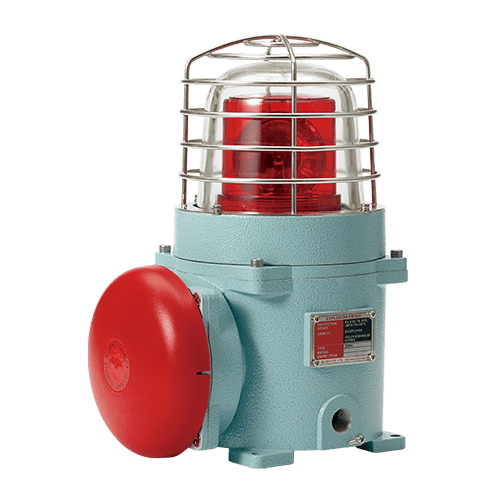

- Large explosion proof signal beacon / light & alarm bell combinations
- Long product lifetime with the application of a high intensity LED light source
- Suitable for locations where bulb replacement is inconvenient
- Flashing rate : 60-80 flashes/min(Built in switch for steady/flashing selection)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials: Lens-Tempered glass, Filter-PC, housing-Al, Protection cage-STS316L, Reflector-ABS
- Protection rating : Ex d ⅡC T6, IP55
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Related Products
Product overview
- Large explosion proof signal beacon / light & alarm bell combinations
- Long product lifetime with the application of a high intensity LED light source
- Suitable for locations where bulb replacement is inconvenient
- Flashing rate : 60-80 flashes/min(Built in switch for steady/flashing selection)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials: Lens-Tempered glass, Filter-PC, housing-Al, Protection cage-STS316L, Reflector-ABS
- Protection rating : Ex d ⅡC T6, IP55
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Technical details
Specifications
Material
Lens-Tempered glass │Housing-Al
Dimension
Cage Diameter : Ø167 │Height : 333 │Depth : 240
Voltage
DC:24V│AC:110V,220V
Protection rating
IP55
Sound
Max 95dB
Additional Details
Model No.:
SEBAL
