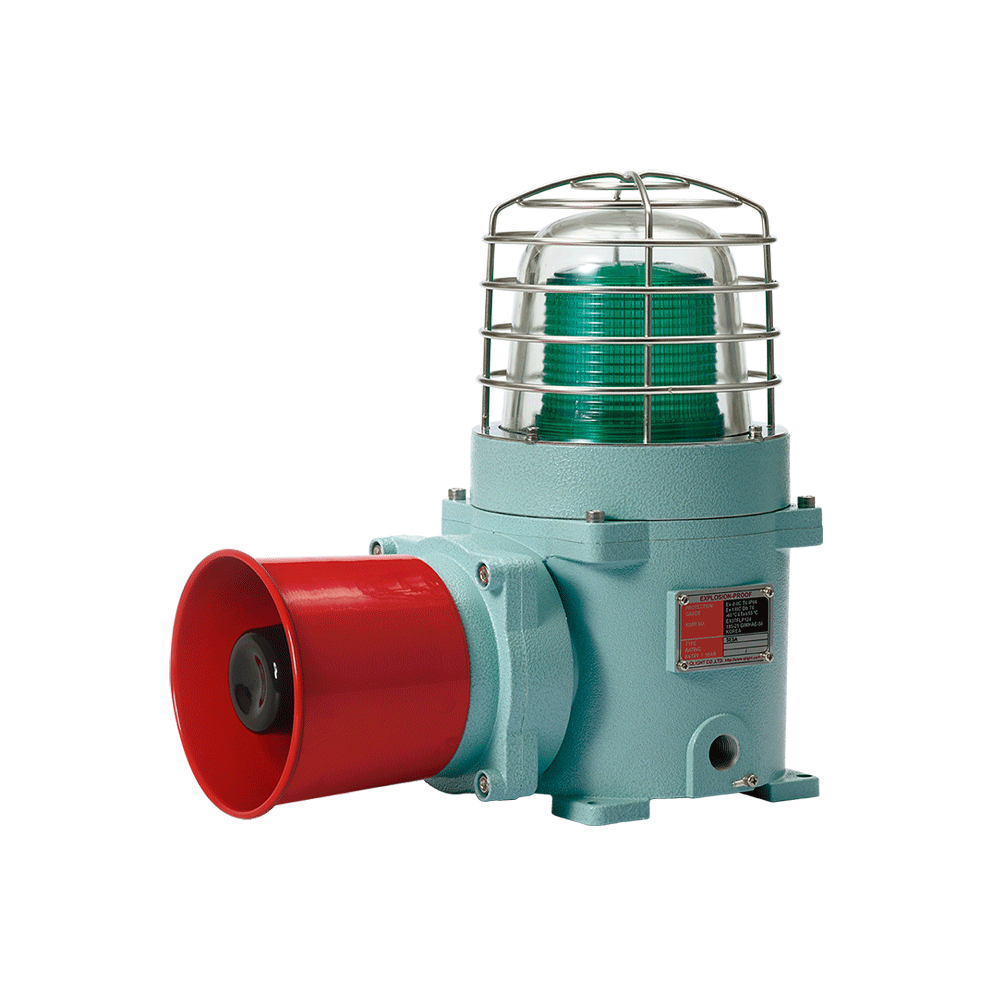

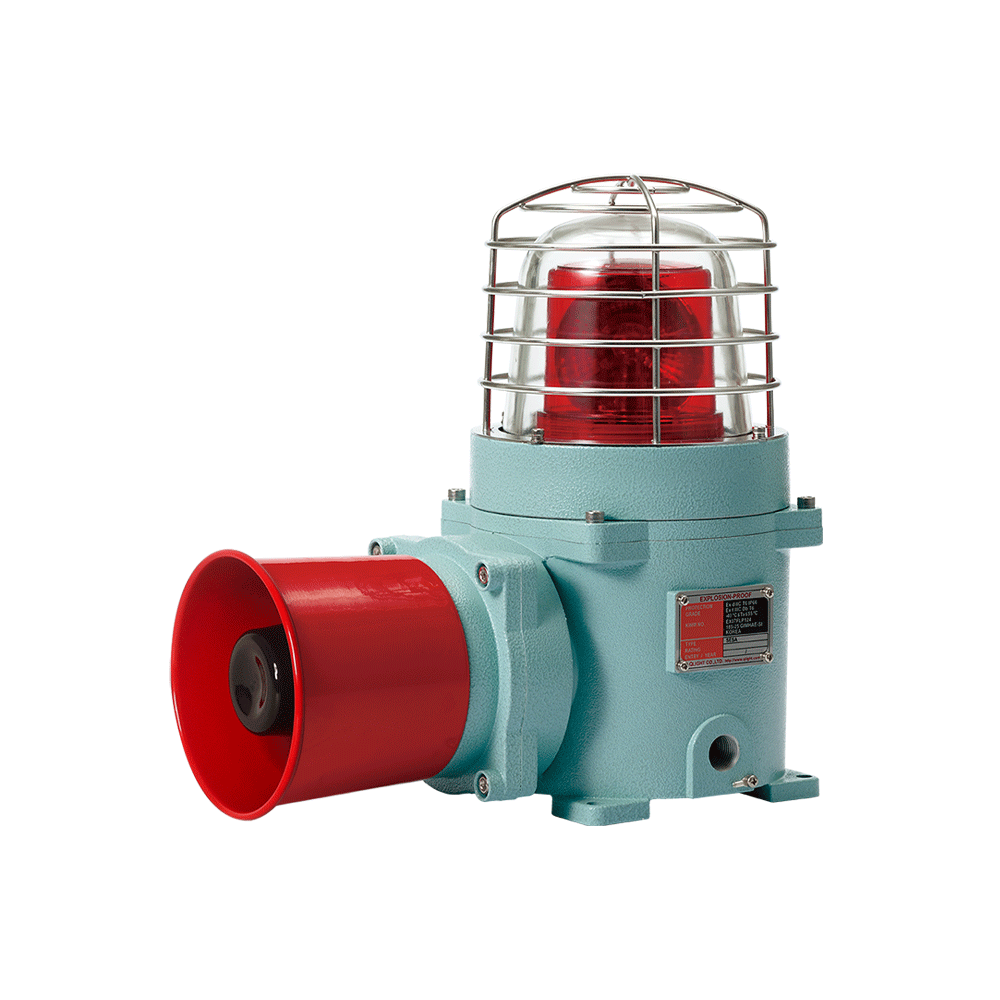

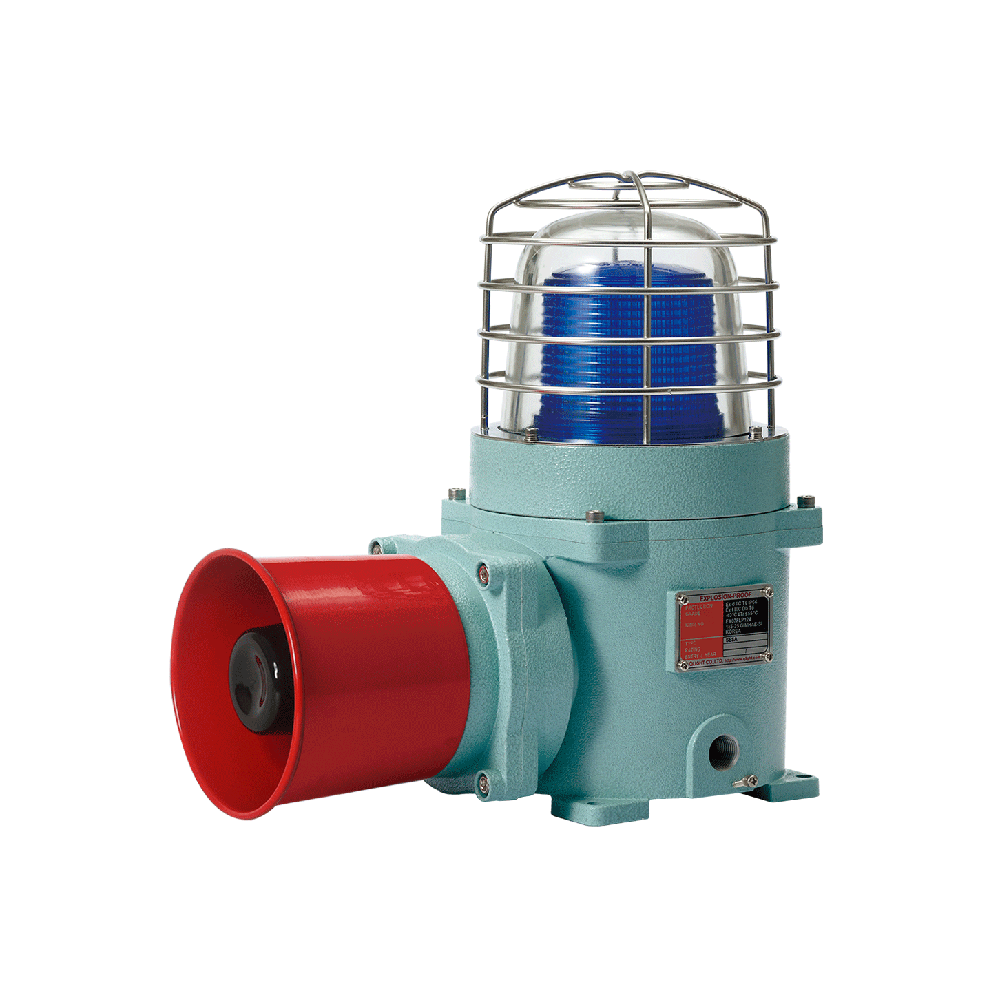

Explosion proof signal beacon & Electronic Sounder

Back

Brand: Qlight

Warranty: 1 Year

Large explosion proof signal beacon / light & electronic sounder combinations
A variety of light sources and sound selections to fit your sophisticated application needs
Aluminum housing provides excellent durability
Fully enclosed structure with protection rating of IP66
Integrated housing and terminal box model
Long product lifetime with the application of a high intensity LED light source
Suitable for locations where bulb replacement is inconvenient
Built in switch for steady/flashing selection
Flashing rate : 60-80 flashes/min
Sound volume : Max. 118dB at 1m(Volume adjustable)
Standard housing color : MUNSELL No. 7.5BG 7/2
Cable entry : 1/2″ NPT
Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-ABS
Certificates : IECEx, ATEX, NEPSI, KCs, CCS, CCC, CCC(F), TS

2 Videos

Large explosion proof signal beacon / light & electronic sounder combinations
A variety of light sources and sound selections to fit your sophisticated application needs
Aluminum housing provides excellent durability
Fully enclosed structure with protection rating of IP66
Integrated housing and terminal box model
Long product lifetime with the application of a high intensity LED light source
Suitable for locations where bulb replacement is inconvenient
Built in switch for steady/flashing selection
Flashing rate : 60-80 flashes/min
Sound volume : Max. 118dB at 1m(Volume adjustable)
Standard housing color : MUNSELL No. 7.5BG 7/2
Cable entry : 1/2″ NPT
Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-ABS
Certificates : IECEx, ATEX, NEPSI, KCs, CCS, CCC, CCC(F), TS

Technical details

Materials Lens-Tempered glass │Housing-Al

Dimension Cage Diameter : Ø167 │Height : 333 │Length : 327

Voltage DC:24V│AC:120V,230V

Protection rating IP66

Sound Max 118dB

Model: SESAL
