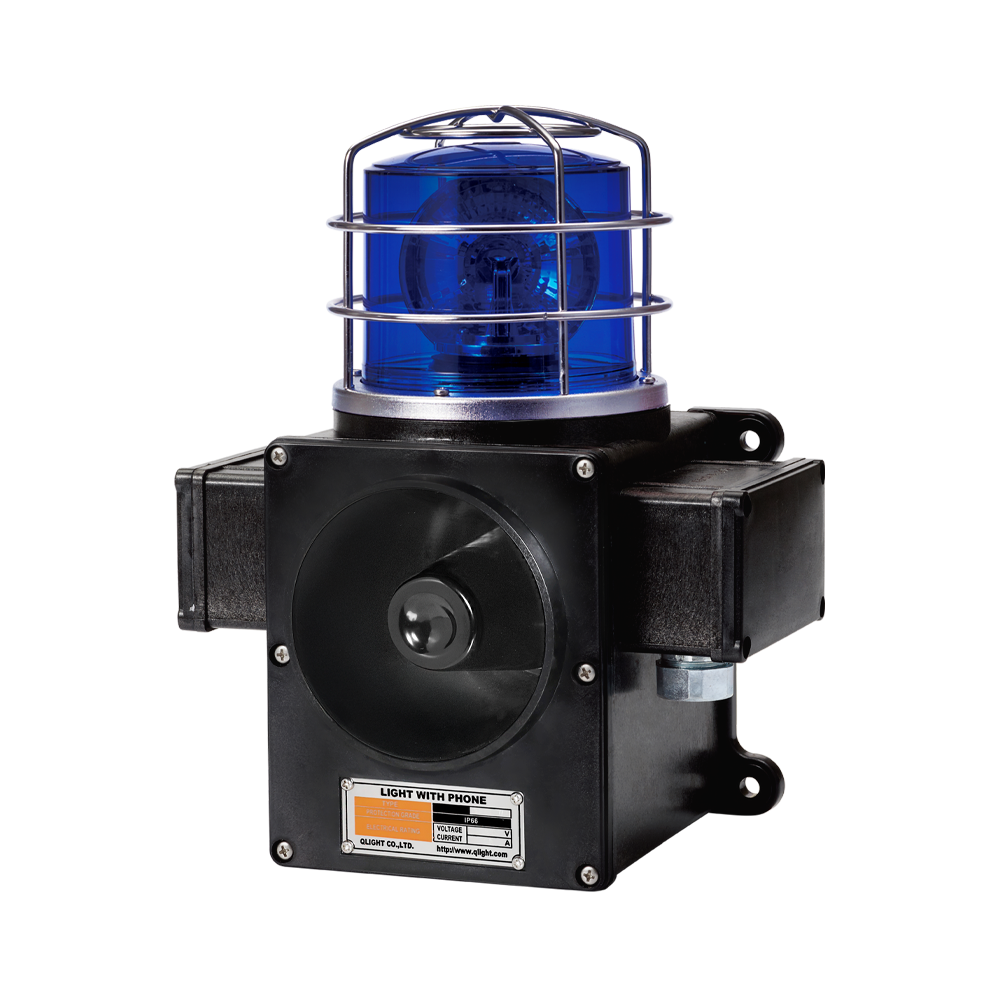

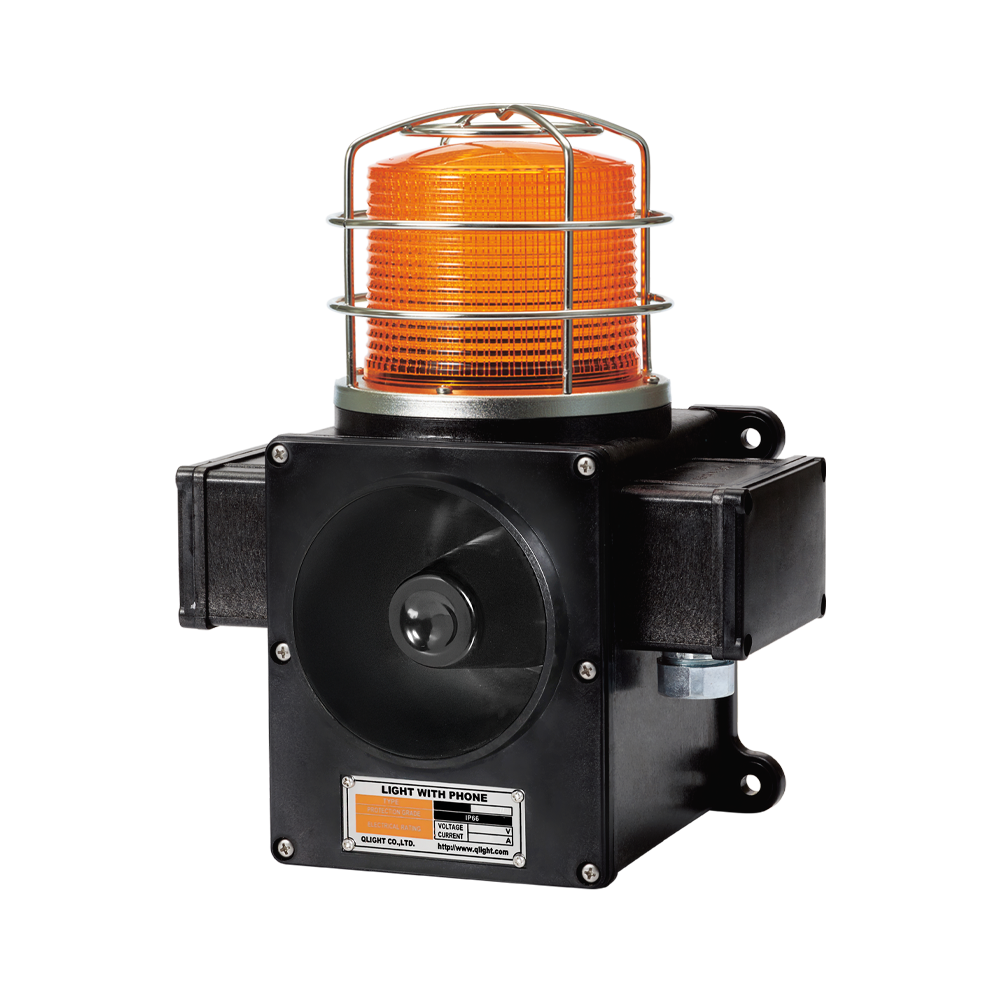

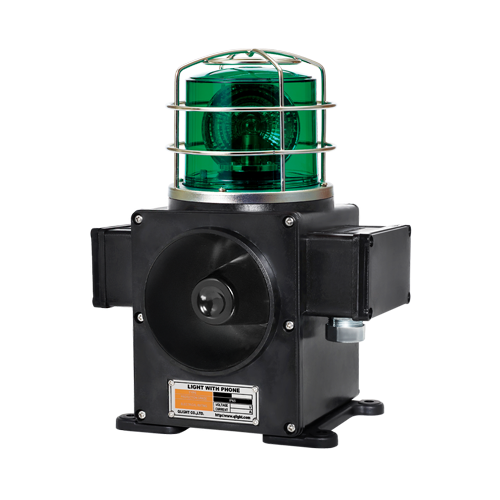

Signal Beacon and Electronic Sounder Combinations

Back

Brand: Qlight

Warranty: 1 Year

Signal beacon & electronic sounder combinations for marine and heavy industries applications
Light weight model with special polycarbonate (PC+GF) housing
Excellent hermetic structure that blocks water and dust
Superior impact and shock resistance
Prevents damage from external contact with recessed horn structure, high volume output possible with the extended length of the horn housing
Easy wiring and sound control with the terminal box attached on the side of housing
Standard model comes with a protection cage equipped
Can select a variety of light sources and sound pattern combinations
Can adjust sound volume and select sound pattern with the switches built inside the units
Multi layer reflector system provides excellent signal light diffusing effect
Materials : Lens-PC, Housing-PC+GF, Protection cage-STS316L, Reflector-PC
Cable entry : 1/2″PF
Revolving speed : 120 - 140RPM
Ambient operating temperature : -20°C to +50°C

Signal beacon & electronic sounder combinations for marine and heavy industries applications
Light weight model with special polycarbonate (PC+GF) housing
Excellent hermetic structure that blocks water and dust
Superior impact and shock resistance
Prevents damage from external contact with recessed horn structure, high volume output possible with the extended length of the horn housing
Easy wiring and sound control with the terminal box attached on the side of housing
Standard model comes with a protection cage equipped
Can select a variety of light sources and sound pattern combinations
Can adjust sound volume and select sound pattern with the switches built inside the units
Multi layer reflector system provides excellent signal light diffusing effect
Materials : Lens-PC, Housing-PC+GF, Protection cage-STS316L, Reflector-PC
Cable entry : 1/2″PF
Revolving speed : 120 - 140RPM
Ambient operating temperature : -20°C to +50°C

Technical details

Usage/Application Industrial

Material ABS

Light Source LED

Color RED, Yellow, Green, Blue

Voltage 12V,24V,110VAC,220VAC

Flash Rate: 60-80 flashes/min(Built-in steady/flashing selection switch)

Model Name/Number: SCD

Protection Level: IP66

Product Detail
