Product overview
Omnidirectional LED sector light Typical range 4 to 12 NM

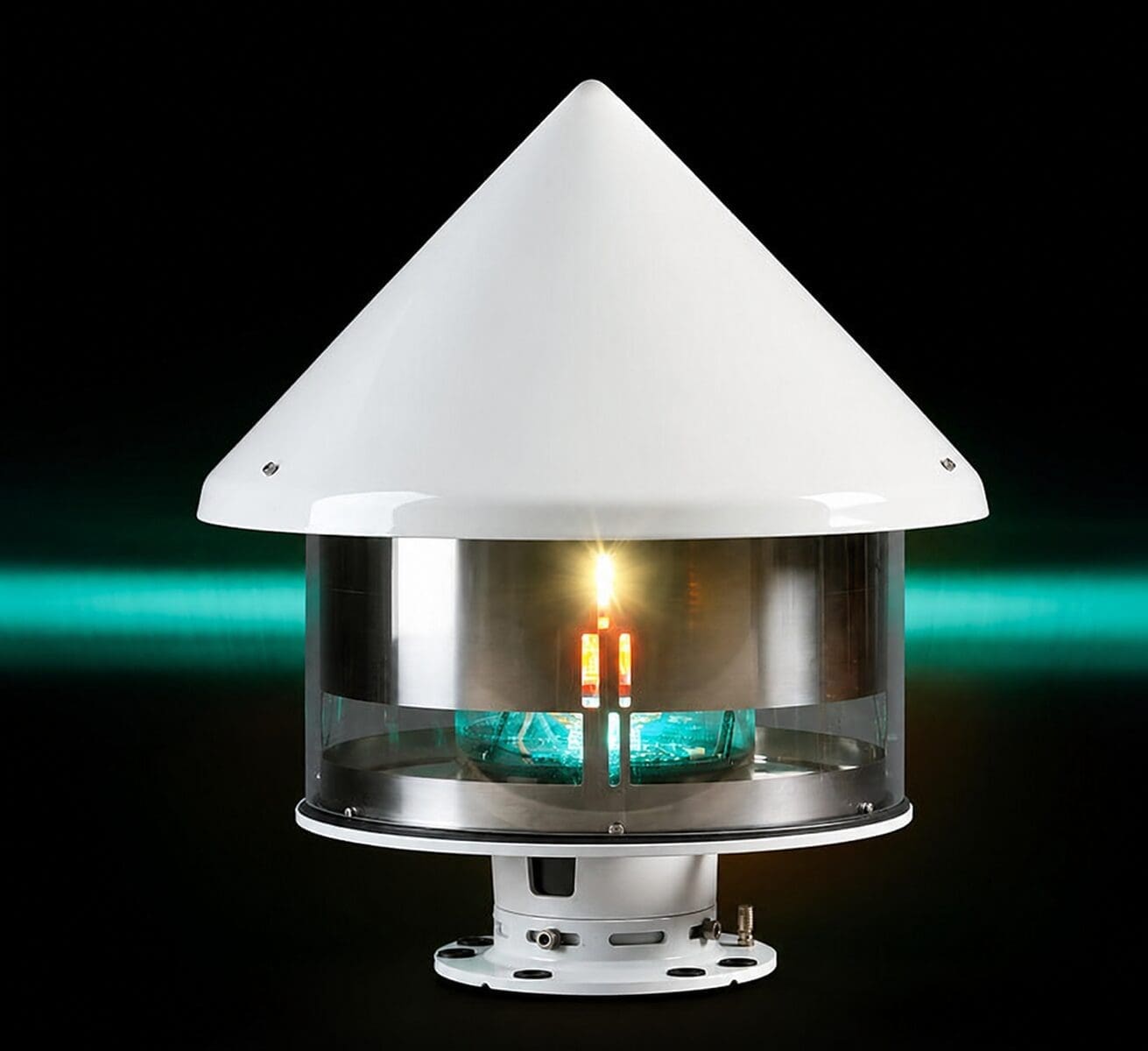

The ODSL 200 omnidirectional sector light is an innovative, compact solution with precise sector borders. Available in 3-tier, 6-tier, and 8-tier configurations, the expanded range offers enhanced performance at all levels, with the High Intensity White (HIW) providing an increased range of up to 12 NM. This light features a replaceable LED optical unit, with range dependent on colour and flash character.
- Sectors are verified at Sabik’s photometric range prior to delivery.
- Easy field installation thanks to the free rotating base for unlimited horizontal alignment
- Precision alignment on-site can be achieved with a factory-aligned gunsight (ordered separately)
- Upgrade-ready design—sector alignments remain unchanged when replacing the LED optical unit
- Optional weather cover available for added durability
- Available as a 3-tier, 6-tier, or 8-tier model, including High Intensity White versions
- Minimal area of uncertainty between sectors, typical-ly less than 0.5°
- Integrated flasher with daylight switch and a 16 A solar panel charger
- Programmable with Sabik IR programming devices or Bluetooth Control
- Equipped with remote monitoring and synchroniza-tion capabilities (optional)
- Patented omnidirectional LED sector light technology
